Pixel Pitch: P5.33mm, P6.67mm, P8mm, P10mm
WPO 960 SERIES
Low Voltage Design
Wild Size Options
Front & Rear Maintenance
CORNER & FLAT SCREEN 2-in-1 DESIGN
FLEXIBLE CABINET SIZE
More Options for Projects
HIGH CONTRAST
Double Louver Design
FINS DESIGN
For Better Heat Radiation
QUICK LOCK & MAGNETS
This function gives you possibility to buy modules and make all your creative ideas easily.
SPECIFICATIONS
| Model No. | WPO10 | WPO8 | WPO6 | WPO5 |
|---|---|---|---|---|
| Pixel Pitch | 10mm | 8mm | 6.6mm | 5.33mm |
| Pixel Density (dots/m2) | 10,000 | 15,625 | 22,500 | 35,156 |
| LED Encapsulation | SMD 3535 | SMD 3535 | SMD 2727 | SMD 2727 |
| Scan Rate | 1/2 scan | 1/4 scan | 1/6 scan | 1/6 scan |
| Module Size | 320 x 320mm | 320 x 320mm | 320 x 320mm | 320 x 320mm |
| Module Resolution (dots) | 32 x 32 | 40 x 40 | 48 x 48 | 60 x 60 |
| Cabinet Size | 960x960x100mm(Optional) | 960x960x100mm(Optional) | 960x960x100mm(Optional) | 960x960x100mm(Optional) |
| Cabinet Resolution (dots) | 96 x 96 | 120 x 120 | 144 x 144 | 180 x 180 |
| Weight per Cabinet | 24.5 kg | 24.5 kg | 24.5 kg | 24.5 kg |
| Brightness (cd/m2) | ≥6500 | ≥6000 | ≥6000 | ≥5500 |
| Refresh Rate (Hz) | 15,360 Hz | 7,680 Hz | 7,680 Hz | 7,680 Hz |
| Max. Power Consumption (W/m2) | 450 W | 450 W | 450 W | 500 W |
| Ave. Power Consumption (W/m2) | 150 W | 150 W | 150 W | 175 W |
| Energy Saving Design | 4.0V Low Voltage Design | 4.0V Low Voltage Design | 4.0V Low Voltage Design | 4.0V Low Voltage Design |
| Degree of Protection | Front IP67 / Rear IP65 | Front IP67 / Rear IP65 | Front IP67 / Rear IP65 | Front IP67 / Rear IP65 |
| Service | Front & Rear Dual Service | Front & Rear Dual Service | Front & Rear Dual Service | Front & Rear Dual Service |
| Power Supply | AC 120/240V (50Hz) (optional) | AC 120/240V (50Hz) (optional) | AC 120/240V (50Hz) (optional) | AC 120/240V (50Hz) (optional) |

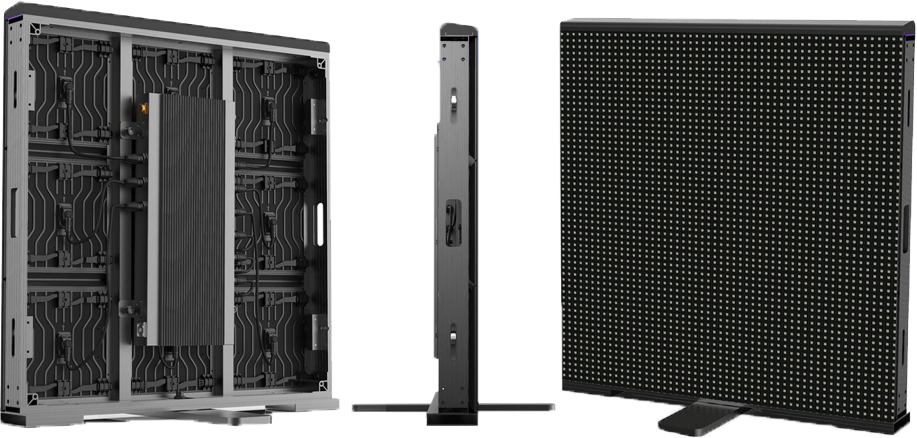

PRODUCT DIMENSIONS
